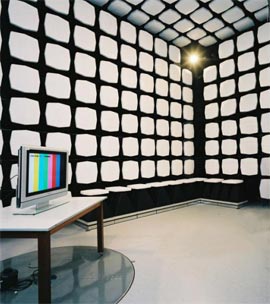

Безэховая экранированная камера FACT 3, рабочий диапазон частот от 26 МГц до 40 ГГц. Поверхность камеры покрыта гибридным поглотителем FerroSorb в комплекте с ферритовыми панелями. Высота сканирования антенн до 4 метров. Диаметр безэховой зоны до 2 метров. Постоянная допустимая напряженность поля до 200 В/м и до 500 В/м в импульсе. Оптимальна для безэховых тестов на иммунитет и полу-безэховые тесты по излучению, для исследования оборудования на ЭМС. Предназначена для тестов по стандартам: ANSI C63.4, FCC (части 15 и 18), EN 50147-2, CISPR 11 / EN 55011, CISPR 16 / EN55016, CISPR 22 / EN55022, VCCI V-3/2003.04, SAE J551 и SAE J1113 (опционально SAE J-1113 и IEC 61000-4-3/EN61000-4-3).
Подробнее
Описание
Radiated Emissions Testing
ETS-Lindgren’s FACT 3 chambers are designed to provide customers with more standardized solutions for different quiet zone diameters and performance options. This will provide users more flexibility to choose which solution works best for their individual needs. The available quiet zone sizes are available up to 2.0 meters in diameter. ETS-Lindgren’s Fact 3 chambers can be used to perform full compliance testing for ANSI C63.4, FCC Parts 15 and 18, EN 50147-2, CISPR 11 / EN 55011, CISPR 16 / EN55016, CISPR 22 / EN55022, VCCI V-3/2003.04, SAE J551 and SAE J1113.
ETS-Lindgren guarantees that the performance of Normalized Site Attenuation testing according to ANSI C63.4, is ± 4.0 dB for STANDARD chamber, ± 3.5 dB for STANDARD PLUS chamber and ± 3.0 dB for PREMIUM chamber over the frequency range of 30 MHz to 1 GHz. The guaranteed sVSWR performance for frequency range of 1 GHz to 18 GHz is 6.0 dB, regardless which performance option is selected and better performance is achievable with chamber modifications.
Radiated Immunity Testing
ETS-Lindgren’s FACT 3 chambers can also be used to perform full compliance testing for IEC 61000-4-3/EN61000-4-3, SAE J-551 requirements. At FACT 3 range lengths, field uniformity of 0 - 6 dB is achieved in the test aperture over the frequency range of 26 MHz to 18 GHz. At FACT 3 range lengths, test aperture is a vertical plane of 1.5 m x 1.5 m at an elevation of 0.8 m to 2.3 m above the ground plane and field uniformity of 0 - 6 dB is achieved in the test aperture over the frequency range of 80 MHz to 18 GHz, following the field uniformity test procedure of IEC 61000-4-3. Additionally, DuraSorb can safely withstand continuous field intensity of up to 200 V/m and intermittent field intensity of up to 500 V/m. This safely exceeds the field intensity requirements of most commercial RI tests.
Key Features
• 26 MHz - 18 GHz Frequency Range
• Full Compliance Testing for Radiated Emissions:
ANSI C63.4
FCC Parts 15 and 18
EN 50147-2
CISPR 11 / EN550011
CISPR 16 / EN550016
CISPR 22 / EN550022
VCCI V-3 / 2003.04
SAE J551
SAE J1113 (Requires Chamber Modification to Accommodate Full Vehicle)
• Full Compliance Testing for Radiated Immunity:
IEC 61000-4-3 / EN61000-4-3
SAE J551
SAE J1113
• Eligible for FCC 3 Meter Class B Facility Filing
• Available Performance Options: (May Require Chamber Modifications)
Standard ± 4.0 dB per ANSI C63.4
Standard Plus ± 3.5 dB per ANSI C63.4
Premium ± 3.0 dB per ANSI C63.4
• Available as a Turnkey Package:
Chamber, Tower, Turntable, Antennas, Instrumentation and Software
Specifications
Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
ANSI C63.4 Normalized Site Attenuation: 30 MHz to 40 GHz
Physical Specifications
Overall Structure Dim (H): 6.12 m
Overall Structure Dim (L): 9.04 m
Overall Structure Dim (W): 6.71 m
Shield Room Inner Dim (H): 5.64 m
Shield Room Inner Dim (L): 8.53 m
Shield Room Inner Dim (W): 6.1 m
Internal Working Area (L): 8.12 m
Internal Working Area (W): 6.1 m
Internal Working Area (H): 5.48 m
Other Specifications
• ETS-Lindgren FT-1500 on Non-critical Areas of Side-walls and Ceiling
• Dielectric Vapor Barrier and Masonite Underlayment
• One RF-shielded Penetration for Airline to MiniMasttm (Compressed Air is Responsibility of Customer)
• Design and Fabricate RF-shielded Enclosure, Interior Nominal Shield-to-shield Dimensions of 8.5 m L x 6.1 m W x 5.4 m H, includes 15.24 cm Raised Floor
• Sixteen Pieces of ETS-Lindgren FT-100c Ferrite Tile Panels for an Area of the Floor for Radiated Immunity Testing up to 1 GHz
• Installation of the Enclosure and Absorber
• ETS-Lindgren 2090 Dual Device Controller
• ETS-Lindgren FT-1500 for Full Coverage of Transmit End-wall
• Two "N" Type Connectors
• Three 2 x 30 Amp, 60 Hz Power-line Filters for Lights and EUT (Wiring not included)
• Sixteen Pieces of ETS-Lindgren EHP-18PCL Pyramidal Absorber on an Area of the Floor for Radiated Immunity Testing from 1 GHz up to 40 GHz
• 3.18 mm Vinyl Floor Tile
• Guaranteed Performance and a Five-year Limited Warranty; One-year Warranty on Doors, Filters and Moving Parts; Two-year Warranty on Optional ETS-Lindgren's Equipment
• Raised Reflective Ground Plane, 15.24 cm
• One Door Maintenance Kit
• Four Waveguide Vents, 30.48 cm x 30.48 cm
• One Single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-shielded Door, 1.2 m x 2.13 m High
• Field Uniformity Calibration per IEC 61000-4-3 from 26 MHz to 1 GHz (Optional Test from 1 to 40 GHz)
• ETS-Lindgren 2075-2 MiniMast™ Electrically Powered Air Polarization Boom Tower with 20 m Cable and Fiber Optic Feed-through
• Light Reflective Covers for FS-400 and FS-600 Absorber
• ETS-Lindgren FS-600, Hybrid Absorber on Specular Critical Regions of Side-walls
• One Fiber Optic Penetration Kit
• One Threaded Brass Ground Stud 1.27 cm diameter x 12.7 cm Long
• Normalized Site Attenuation Test per ANSI C63.4-2000 from 30 MHz to 1 GHz (Optional Test from 1 to 40 GHz
• Two Access Hatches in Raised Floor, 45.72 cm x 45.72 cm
• ETS-Lindgren 2087-2.03 Electrically Powered, 2 m Turntable with Cable and Fiber Optic Feed-through
• One Connector Panel, 15.24 cm x 91.44 cm Clear Opening
• ETS-Lindgren FS-400, Hybrid Absorber Full Coverage of End-wall Behind Turntable and Specular Region of Ceiling
• One 3.81 cm Pipe Penetration with Flange Nuts and Cap
• Shield Test per MIL-STD-285, One Frequency Test at 1 GHz
ETS-Lindgren’s FACT 3 chambers are designed to provide customers with more standardized solutions for different quiet zone diameters and performance options. This will provide users more flexibility to choose which solution works best for their individual needs. The available quiet zone sizes are available up to 2.0 meters in diameter. ETS-Lindgren’s Fact 3 chambers can be used to perform full compliance testing for ANSI C63.4, FCC Parts 15 and 18, EN 50147-2, CISPR 11 / EN 55011, CISPR 16 / EN55016, CISPR 22 / EN55022, VCCI V-3/2003.04, SAE J551 and SAE J1113.
ETS-Lindgren guarantees that the performance of Normalized Site Attenuation testing according to ANSI C63.4, is ± 4.0 dB for STANDARD chamber, ± 3.5 dB for STANDARD PLUS chamber and ± 3.0 dB for PREMIUM chamber over the frequency range of 30 MHz to 1 GHz. The guaranteed sVSWR performance for frequency range of 1 GHz to 18 GHz is 6.0 dB, regardless which performance option is selected and better performance is achievable with chamber modifications.
Radiated Immunity Testing
ETS-Lindgren’s FACT 3 chambers can also be used to perform full compliance testing for IEC 61000-4-3/EN61000-4-3, SAE J-551 requirements. At FACT 3 range lengths, field uniformity of 0 - 6 dB is achieved in the test aperture over the frequency range of 26 MHz to 18 GHz. At FACT 3 range lengths, test aperture is a vertical plane of 1.5 m x 1.5 m at an elevation of 0.8 m to 2.3 m above the ground plane and field uniformity of 0 - 6 dB is achieved in the test aperture over the frequency range of 80 MHz to 18 GHz, following the field uniformity test procedure of IEC 61000-4-3. Additionally, DuraSorb can safely withstand continuous field intensity of up to 200 V/m and intermittent field intensity of up to 500 V/m. This safely exceeds the field intensity requirements of most commercial RI tests.
Key Features
• 26 MHz - 18 GHz Frequency Range
• Full Compliance Testing for Radiated Emissions:
ANSI C63.4
FCC Parts 15 and 18
EN 50147-2
CISPR 11 / EN550011
CISPR 16 / EN550016
CISPR 22 / EN550022
VCCI V-3 / 2003.04
SAE J551
SAE J1113 (Requires Chamber Modification to Accommodate Full Vehicle)
• Full Compliance Testing for Radiated Immunity:
IEC 61000-4-3 / EN61000-4-3
SAE J551
SAE J1113
• Eligible for FCC 3 Meter Class B Facility Filing
• Available Performance Options: (May Require Chamber Modifications)
Standard ± 4.0 dB per ANSI C63.4
Standard Plus ± 3.5 dB per ANSI C63.4
Premium ± 3.0 dB per ANSI C63.4
• Available as a Turnkey Package:
Chamber, Tower, Turntable, Antennas, Instrumentation and Software
Specifications
Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
ANSI C63.4 Normalized Site Attenuation: 30 MHz to 40 GHz
Physical Specifications
Overall Structure Dim (H): 6.12 m
Overall Structure Dim (L): 9.04 m
Overall Structure Dim (W): 6.71 m
Shield Room Inner Dim (H): 5.64 m
Shield Room Inner Dim (L): 8.53 m
Shield Room Inner Dim (W): 6.1 m
Internal Working Area (L): 8.12 m
Internal Working Area (W): 6.1 m
Internal Working Area (H): 5.48 m
Other Specifications
• ETS-Lindgren FT-1500 on Non-critical Areas of Side-walls and Ceiling
• Dielectric Vapor Barrier and Masonite Underlayment
• One RF-shielded Penetration for Airline to MiniMasttm (Compressed Air is Responsibility of Customer)
• Design and Fabricate RF-shielded Enclosure, Interior Nominal Shield-to-shield Dimensions of 8.5 m L x 6.1 m W x 5.4 m H, includes 15.24 cm Raised Floor
• Sixteen Pieces of ETS-Lindgren FT-100c Ferrite Tile Panels for an Area of the Floor for Radiated Immunity Testing up to 1 GHz
• Installation of the Enclosure and Absorber
• ETS-Lindgren 2090 Dual Device Controller
• ETS-Lindgren FT-1500 for Full Coverage of Transmit End-wall
• Two "N" Type Connectors
• Three 2 x 30 Amp, 60 Hz Power-line Filters for Lights and EUT (Wiring not included)
• Sixteen Pieces of ETS-Lindgren EHP-18PCL Pyramidal Absorber on an Area of the Floor for Radiated Immunity Testing from 1 GHz up to 40 GHz
• 3.18 mm Vinyl Floor Tile
• Guaranteed Performance and a Five-year Limited Warranty; One-year Warranty on Doors, Filters and Moving Parts; Two-year Warranty on Optional ETS-Lindgren's Equipment
• Raised Reflective Ground Plane, 15.24 cm
• One Door Maintenance Kit
• Four Waveguide Vents, 30.48 cm x 30.48 cm
• One Single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-shielded Door, 1.2 m x 2.13 m High
• Field Uniformity Calibration per IEC 61000-4-3 from 26 MHz to 1 GHz (Optional Test from 1 to 40 GHz)
• ETS-Lindgren 2075-2 MiniMast™ Electrically Powered Air Polarization Boom Tower with 20 m Cable and Fiber Optic Feed-through
• Light Reflective Covers for FS-400 and FS-600 Absorber
• ETS-Lindgren FS-600, Hybrid Absorber on Specular Critical Regions of Side-walls
• One Fiber Optic Penetration Kit
• One Threaded Brass Ground Stud 1.27 cm diameter x 12.7 cm Long
• Normalized Site Attenuation Test per ANSI C63.4-2000 from 30 MHz to 1 GHz (Optional Test from 1 to 40 GHz
• Two Access Hatches in Raised Floor, 45.72 cm x 45.72 cm
• ETS-Lindgren 2087-2.03 Electrically Powered, 2 m Turntable with Cable and Fiber Optic Feed-through
• One Connector Panel, 15.24 cm x 91.44 cm Clear Opening
• ETS-Lindgren FS-400, Hybrid Absorber Full Coverage of End-wall Behind Turntable and Specular Region of Ceiling
• One 3.81 cm Pipe Penetration with Flange Nuts and Cap
• Shield Test per MIL-STD-285, One Frequency Test at 1 GHz
